Scripting Logic Node for Gira X1/L1 and Homeserver

With the SCRIPTING Logic Node you can combine calculations, text processing and custom logic into a single powerful block, replacing multiple formula, formatter and parser modules at once.
Build compact logic flows, reduce wiring complexity and create advanced automations with just a few lines of code. From smart data handling to dynamic text generation and complex conditions: everything runs inside one fast, flexible node.

One block. Endless possibilities.

Download

Latest version of Scripting X1 Logic Node (v.0.2.000000) (Supports JS/Lua/Python)
Latest version of Scripting L1 Logic Node (v.0.2.000000) (Supports JS/Lua)
Latest version of Scripting Homeserver Baustein (v1.1) (Supports JS)

Use below scripting editor and cut/paste the one-liner in the logic node.

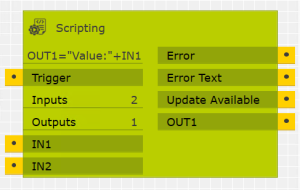

Logic Node for Gira X1/L1
(also available for Homeserver, see below)

Other X1/L1 Nodes you might like
Miele Duco CounterPlus

Click the line below to copy it into the Scripting Logic Node:

Successfully copied. Paste this into the Scripting Logic Node!

How it works

The X1/L1 Logic node works slightly different than the Homeserver Building Block.

X1/L1

Sending any value to the Trigger port (bool/number/text, even false or zero) will execute the script.
Just select the number of Input and Output ports you wish to use. All port accept any value (text/boolean/numbers).
The Logic Node will check for any updates during project check and report the update in the GPA. It will also check for updates about weekly once deployed on the X1/L1.
When enabling debug, debug text will go to the “Error Text” output, including the script execution time.

Homeserver

There are 10 number inputs: IN1-IN10 and 10 text inputs: IN11-IN20.
Outputs are: OUT1-OUT10 (numbers) and OUT11-OUT20 (text).
The Building Block can be triggered by sending any number or boolean to the Trigger input (also zero or false).
It will do an update check when deployed on the homeserver (about weekly).
When enabling debug, it will print debug text to the Homeserver console (when you connect it to a VGA monitor).

Both the X1/L1 and the Homeserver follow the these rules:

If Input or Output ports are not set we assume they are 0 (zero) or “0”. So if IN2 is not set, the following script will give 0.

OUT1=IN2;

We also assume 0 (zero) or ”0″ for output ports when they are not set, so the follwing script will also be 0 when OUT2 has no value yet.

OUT1=OUT2;

All ports are always set when the block is triggered. If you want Send-By-Change (SBC), use a SBC block at the output.

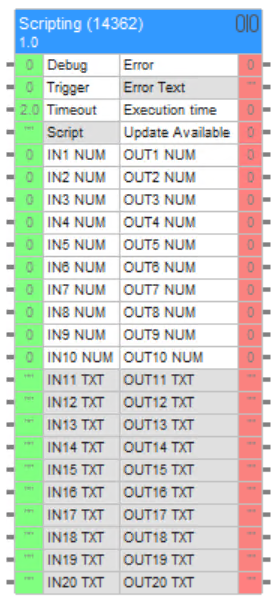

Gira Building Block: Scripting for Homeserver

Building Block for Gira Homeserver

Javascript Examples (X1 / L1 / Homeserver)

Numbers

OUT1 = IN1 * 1.19;						// Multiply with Mwst.

OUT1 = IN1 + IN2 + IN3 + (IN4+2)		// Set Output sum.

OUT1 = IN1 + IN2; OUT2 = IN1 - IN2;		// Set multiple outputs in one time

OUT1 = (IN1 / 255) * 100;				// Devide and use ( and )

OUT1 = Math.round(IN1 * 100) / 100;		// Math.round will always round on whole number, to have two decimals, device by 100.

OUT1 = Math.min(Math.max(IN1, 0), 100);	// Limit the Input between 0 and 100

OUT1 = Math.abs(IN1);					// Inverse: -5 -> 5

OUT1 = -IN1;							// Also 5 -> -5

OUT1 = Math.pow(IN1, 2);				// (power of 2): IN1²

OUT1 = Math.sqrt(IN1);					// (taking the root): √IN1

Strings (text)

OUT1 = "Hello there!";			// Set a simple text to Output1

OUT1 = "Value is: " + IN1;      // Set combined text+value. Example: "Value is: 10"

OUT1 = "My " + IN1 + " has " + IN2 + " homes";   // Concatenate Strings. Example: "My Son has 2 homes"

OUT1 = IN1.toString().substring(0, 5);    // Take the first 5 characters (start at character 0)

OUT1 = IN1.toString().substring(0, 5);    // Trim spaces

if (IN1.length > 10) OUT1 = IN1.substring(0, 10) + "...";	// Shorten text to 10 characters + "..."
else OUT1 = IN1;

OUT1 = IN1.toString().substring(0, 5);    // Take the first 5 characters (start at character 0)

OUT1 = IN1.replace(/,/g,".");           // Replace all commas by dots.

OUT1 = IN1.slice(-3);  					// Remove last 3 characters

Logic

if (IN1=1) OUT1=1				// Use If to set output if IN1=1, otherwise OUT1 will be default/0.

var temp = IN1;					// Declare a variable and use it or
OUT1 = tempt;

i=1;
OUT1 = this["IN"+1]				// Computed variabe: OUT1=IN1

if (IN1 >= 50) OUT1 = 1;		// Use if else
else OUT1 = 0;

if (IN1==1) OUT1 = 1;			// Use if, elseif, else
else if (IN2==1) OUT1 = 2;
else if (IN3==1) OUT1 = 3;
else OUT1 = 0;

if (OUT1==1 && IN2==0) OUT2 = 123;	 // Read the value of OUT1

switch(IN1) {					   // Switch Logic (easier than if/elseif/else)
  case 0: OUT1 = "OFF"; break;
  case 1: OUT1 = "AUTO"; break;
  case 2: OUT1 = "MANUAL"; break;
  default: OUT1 = "UNKNOWN";
}

for (var i = 1; i <= 5; i++) {		// A FOR Loop
  if (this["IN" + i] == true) {		// The computed variable IN1...IN5
    OUT1 = i;
    break;
  }
}

JSON (extract data easily!)

 Sample JSON:
{
  "device": {
    "name": "LivingRoomController",
    "status": "online",
    "metrics": {
      "temperature": 21.6,
      "humidity": 48,
      "power": 312.4
    },
    "modes": [
      { "id": 1, "name": "Auto", "active": true },
      { "id": 2, "name": "Eco", "active": false },
      { "id": 3, "name": "Boost", "active": false }
    ]
  }
}

var obj = JSON.parse(IN1);						// Read Input1 as JSON

OUT1 = obj.device.name;                         // "LivingRoomController"

OUT2 = obj.device.metrics.temperature;          // 21.6

OUT3 = obj.device.modes[0].name;                 // "Auto"

OUT4 = obj.device.modes[2].active;               // false

OUT5 = obj.device.modes.length;                  // 3

OUT6 = obj.device.status + " / " + obj.device.metrics.power + "W";

LUA Scripting (X1 / L1 / Homeserver)

General examples

Do clamping (minimum value of 0 and maximum value of 100)

STATE.on = STATE.on or 0
local t = IN1 or 0
if t < 20 then STATE.on = 1 end
if t > 22 then STATE.on = 0 end
OUT1 = STATE.on

Remember the lowest (OUT2) and Highest (OUT3) values in memory and also have the average of those two (OUT1)

STATE.min = STATE.min or (IN1 or 0)
STATE.max = STATE.max or (IN1 or 0)
local v = IN1 or 0
if v < STATE.min then STATE.min = v end
if v > STATE.max then STATE.max = v end
OUT1 = (STATE.min+STATE.max)/2   -- AVERAGE BETWEEN MIN AND MAX
OUT2 = STATE.min                 -- The minimum value ever measured
OUT3 = STATE.max                 -- The maximum value ever measured

Python 2.7 + packages Examples (X1 only!)

Using external Libraries (pymodbus, paho (mqtt) and requests with json)

Get two values from Modbus Holding Registers, do some calculations on it and write them to OUT1 and OUT2:

# Get 2 values from a Modbus Holding Registers and write them to OUT1 and OUT2.
from pymodbus.client.sync import ModbusTcpClient
c = ModbusTcpClient("192.168.1.50", port=502)
c.connect()
raw1 = c.read_holding_registers(300, 1, unit=1).registers[0]
raw2 = c.read_holding_registers(301, 1, unit=1).registers[0]
OUT1 = raw1 / 10.0
OUT2 = raw2 / 10.0
c.close()

Sending a message to a MQTT server with authentication:

# Send IN1 as Text to an MQTT Server
import paho.mqtt.publish as publish
publish.single(
    "home/scripting/test",
    payload=str(IN1),		# send as text
    hostname="192.168.1.60",
    port=1883,
    auth={"username": "mqttuser", "password": "mqttpass"}
)
OUT1 = 1   # ok

Requests and JSON with Python:

# Get a website, parse it to JSON and get a value from it.
import requests
try:
    r = requests.get("https://httpbin.org/json", timeout=5)
    data = r.json()

    OUT1 = r.status_code                  # mostly 200
    OUT2 = data["slideshow"]["title"]     # "Sample Slide Show"
except Exception as e:

AI

Examples of asking ChatGPT, CoPilot or DeepSeek for a script:

"Can you generate JavaScript code for the Gira X1 Scripting Logic Module (see examples at https://www.roelbroersma.nl/scripting)?
I have 2 inputs and 1 output.

IN1 = weather information as text
IN2 = expected afternoon temperature (number)

Requirements:

Output format: Temp: XX°C - DESCRIPTION
DESCRIPTION must be truncated to 20 characters and end with .. if longer
Use only plain JavaScript compatible with Jint
Assign the result to OUT1″

Release notes (X1 Logic Node)

v0.2.000000 (19-mar-2026)

Separated module for X1 and L1.
Both modules now support LUA Scripting!
X1 Module supports Python 2.7 with all basic libraries and paho/mqtt, requests, urllib2, urllib3, pymodbus, schedule, jinja2, flask, websocket, yaml, bacpipes (BacNet!) and much more.
Completely re-engineerd system for including packages.
Completely re-engineered separated worker process for Lua and Python scripting.
Timeout can be 0 (zero), for endless processes like receiving mqtt or a webserver!
Number of Inputs and Outputs can be 0 – 50 (instead of 1-50), so you can start a webserver or script without any input or output.
Triggering the Clear function will release the Worker process (handy when using timeout=0)
Implemented STATE memory (memory within the same block, so you can do: STATE.x = STATE.x+1; OUT1=STATE.x; to create a counter every time you trigger.
Implemented SHAREDSTATE memory (memory between multiple blocks!), so you can do: SHAREDSTATE.x = 5 in one block and use OUT1=SHAREDSTATE.x in another block.

v0.1.000025 (23-feb-2026)

Feature: Set script timeout and see Execution time. Test it with a script like: for (i=1;i>0;i++)

v0.1.000024 (02-feb-2026)

Fix: Update Notification in GPA (didn't work!).
Fix: You couldn't Trigger the block when not all inputs are set, fixed by pre-filling with 0 (zero).
Fix: A lot of small fixes ans possible NullPointerExceptions.
Feature: Implemented great Debug logging (enable Debug to see what's happening).
Feature: Debugging shows script execution time. (a hard limit is set at 200ms).

v0.1.000018 (01-feb-2026)

Initial version
Tested on Gira GPA v6.0. X1: v3.0.52 and L1: v2.5.149, but may work on lower versions.

Release notes (L1 Logic Node)

v0.2.000000 (19-mar-2026)

Separated module for X1 and L1.
Both modules now support LUA Scripting! L1 module will not support Python because of too less memory/space.
Completely re-engineerd system for including packages.
Completely re-engineered separated worker process for Lua scripting.
Timeout can be 0 (zero), for endless processes, however, be carefull with this (your L1 might hang and need to restart)
Number of Inputs and Outputs can be 0 – 50 (instead of 1-50), so you can start a script without any input or output.
Triggering the Clear function will release the Worker process (handy when using timeout=0)
Implemented STATE memory (memory within the same block, so you can do: STATE.x = STATE.x+1; OUT1=STATE.x; to create a counter every time you trigger.
Implemented SHAREDSTATE memory (memory between multiple blocks!), so you can do: SHAREDSTATE.x = 5 in one block and use OUT1=SHAREDSTATE.x in another block.

Release notes (Homeserver Building Block)

v1.1 (20-feb-2026)

Small timing/caching fix with uuid

v1.0 (17-feb-2026)

Tested with Experte 4.13 (but should work on older versions >4.5. Experte 4.5 and older might not work)
