gira ip router i04 upgrade failed and fix

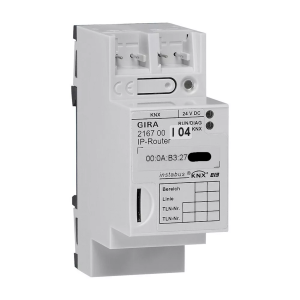

I bought a Gira IP Router 2167 00 (hardware version I04) without a label on the side (so no password sticker).
The device came with software version 2.0.134 and could only be programmed using ETS with the KNX/IP-Router V2.0 901610 V0.1 application.
Of course, I wanted to upgrade it to a modern firmware (4.x) so I could use it with the KNX IP-Router V4 application and enable Secure KNX.

First attempts on Windows 11

I tried upgrading with Gira Project Assistant (GPA) 5.2.0 on Windows 11.
That failed immediately with an XMLRPC error / (TLS error)

Typical registry hacks to re-enable TLS 1.0 and TLS 1.1 did not help.
Windows 10/11 no longer support these protocols properly for old .NET apps.

Windows 7 SP1 Virtual Machine

So I created a Windows 7 SP1 VM on Hyper-V.

KB hotfixes installed

To get .NET and TLS working I first installed the following updates:

  • KB4490628 (Servicing Stack Update)

  • KB4474419 (SHA-2 support)

  • KB4536952 (last Rollup, Jan 2020, incl. latest root certificates)

Registry fixes for TLS 1.0 and 1.1

By default Win7 SP1 doesn’t have explicit keys for TLS, so I created them:

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.0\Client] “Enabled”=dword:00000001
“DisabledByDefault”=dword:00000000

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.0\Server] “Enabled”=dword:00000001
“DisabledByDefault”=dword:00000000

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.1\Client] “Enabled”=dword:00000001
“DisabledByDefault”=dword:00000000

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.1\Server] “Enabled”=dword:00000001
“DisabledByDefault”=dword:00000000

Reboot after importing this .reg file.

Fixing the certificate error

The IP Router with firmware 2.x only offers a self-signed TLS 1.0 cert.
Newer GPA versions reject this. To fix it:

  1. Downloaded OpenSSL 1.0.2u for Windows (binary build that still supports TLS 1.0/1.1).

  2. Ran:

    openssl s_client -connect 192.168.4.100:4433 -tls1 -showcerts

  3. Copied everything between:

    -----BEGIN CERTIFICATE-----
    ...
    -----END CERTIFICATE-----

    into a new file gira.cer. (including these headers)

  4. Imported the cert into Trusted Root Certification Authorities:

    certutil -f -addstore root gira.cer

  5. Rebooted the VM.

Just to be safe, I also set the system time back to 01-01-2018 (not sure if needed, but maybe it helped).

Upgrading the firmware

With GPA 2.6 running on Windows 7 SP1:

  1. Connected to the IP router.

  2. Installed firmware 3.1.3683 first (step-upgrade).

    • This takes a while.

  3. Then installed firmware 4.1.474.

  4. Rebooted the device.

  5. Pressed the program button and programmed the individual address using ETS 5.

  6. Downloaded the KNX IP-Router V4 (V4.0) application to the device using ETS 5.

Default login

After the upgrade, use the default username: device and the password: device
